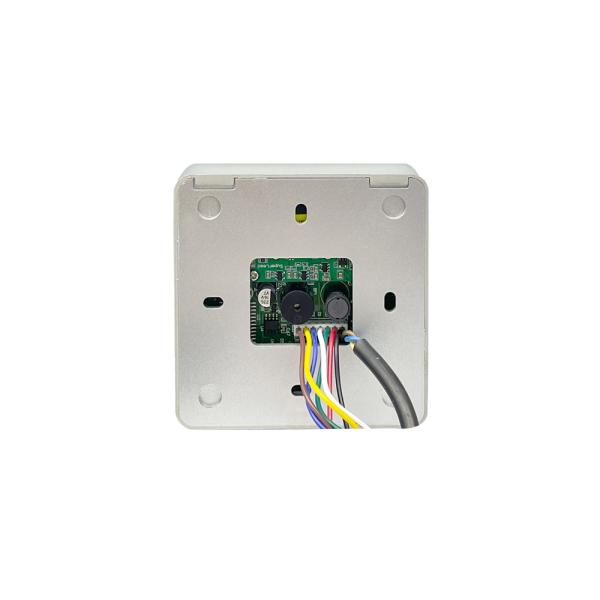

QR Code and Mifare Card Reader with IC card Reader

Name: QR Code and Mifare Card Reader with IC card Reader
Brand: Rakinda
Price: 1 USD

Best QR Code and Mifare Card Reader with IC card Reader wholesale

Brand Name : Rakinda

Model Number : RD003

Certification : CE,FCC,ROHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 200PCS/Week

Delivery Time : 5-8working days

Packaging Details : 1PCS/Box

Image Sensor : 752*480

Illumination lights : White LED

Reading Distance : 40-220 mm

Working current : 600mA

Size : 86mm X 86mm X 22mm (L*W:H)

Contact Now

A QR code and Mifare card reader with RS232 and Wiegand interfaces is a versatile device commonly used in access control and authentication systems

When combined, a QR code and Mifare card reader with RS232 and Wiegand interfaces provides a flexible and comprehensive solution for access control and authentication needs. For example, users can authenticate themselves using either a Mifare card or a QR code scanned from their mobile device, offering convenience and versatility in access management.

Integration with access control systems typically involves configuring the reader to communicate using the RS232 or Wiegand protocol, allowing it to send authentication data (such as card IDs or QR code data) to the central access control panel for verification and access granting decisions.

Features
1. Wiegand output protocol: Wiegand26/32 can be set
2. Wiegand output cycle and pulse width can be set
3. Wiegand output byte order can be set
4. QR code output Wiegand data format and output character position can be set
5. Readable M1 card sector, sector number can be set, card sector password can be set
6. Read financial CPU card file data
7. Special modifications can be upgraded online
8. Wiegand interface, RS232 and RS485 optional

Parameters

RD003 Multifunctional Reader Components
Image Sensor	752*480
Illumination lights	White LED
Symbologies	1D: CODE 128, UCC/EAN-128,AIM-128,EAN-8
	2D: PDF417, QR CODE, DATA MATRIX. Supporting both phone screen code and paper printed code;
Reading Distance	40-220 mm
Scanning Angle	360°full angle
Mechanical Specifications
Power input	9-18VDC
Working current	600mA
way beer control	low level effective
Reading I S014443A cards or Mifare sector content, can also read/write CPU card file according to request
Barcode or 2D code scanning input
Output code or IC card content by RS232 interface
Wiegand 34/26 output, output IC card number (normal reading function) and first three or four bytes of qr code character string (compatible with IC card number wiegand 26/34 format)
RS232 and Wiegand output at the same time. Reading card or scanning qr cod it will generate both wiegand output and rs232 serial output
Support RS232 serial 2D code converting to wiegand 34/26 output
WIFI, LORA interface are extensible
Structure Dimensions
Size	86mm X 86mm X 22mm (L*W:H)

QR Code and Mifare Card Reader with IC card Reader
